Class 7: Machine Learning 1

Joseph Lo (PID: A18121493)

Background

Today we will begin our exploration of important machine learning methods with a focus on clustering and dimensionallity reduction.

To start testing these methods let’s make up some sample data to cluster where we know what the answer should be.

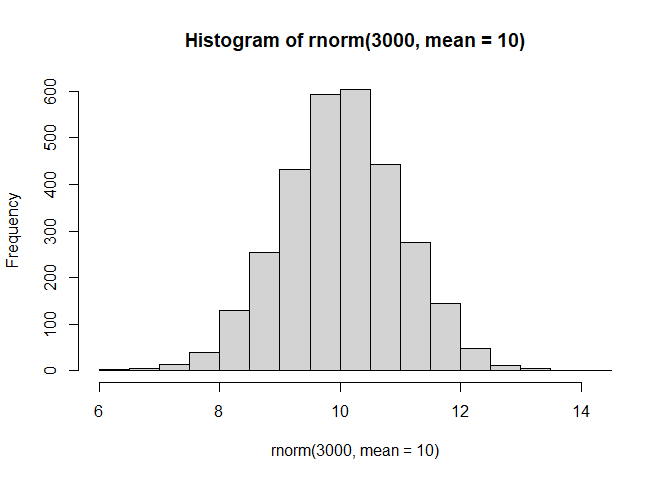

hist( rnorm(3000, mean=10))

Q. Can you generate 30 numbers centered at +3 and 30 numbers at -3 taken at random from a normal distribution.

tmp <- c(rnorm(30, mean=3), rnorm(30, mean=-3))

x <- cbind(x=tmp, y=rev(tmp))

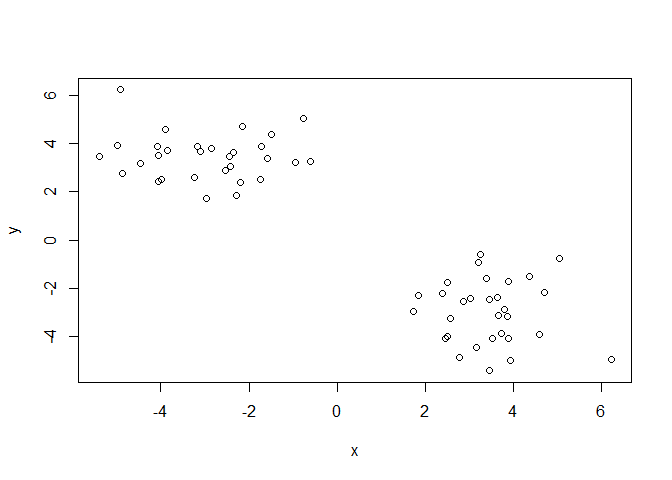

plot(x)

K-means clustering

The main function in “base R” for K-means clustering is called kmeans(), let’s try it out:

k <- kmeans(x, centers = 2)
k

K-means clustering with 2 clusters of sizes 30, 30

Cluster means:
          x         y
1  3.443737 -2.969099
2 -2.969099  3.443737

Clustering vector:
 [1] 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 2 2 2 2 2 2 2 2
[39] 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2

Within cluster sum of squares by cluster:
[1] 76.76495 76.76495
 (between_SS / total_SS =  88.9 %)

Available components:

[1] "cluster"      "centers"      "totss"        "withinss"     "tot.withinss"
[6] "betweenss"    "size"         "iter"         "ifault"

Q. What component of your kmeans result object has the cluster centers?

k$centers

          x         y
1  3.443737 -2.969099
2 -2.969099  3.443737

Q. What component of your kmeans result object has the cluster size (i.e. how many points are in each cluster)?

k$size

[1] 30 30

Q. What component of your kmeans result object has the cluster membership vector (i.e. the main clustering result: which points are in which cluster)?

k$cluster

 [1] 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 2 2 2 2 2 2 2 2
[39] 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2

Q. Plot the results of clustering (i.e. our data colored by the clustering result) along with the cluster centers.

plot(x, col=k$cluster)

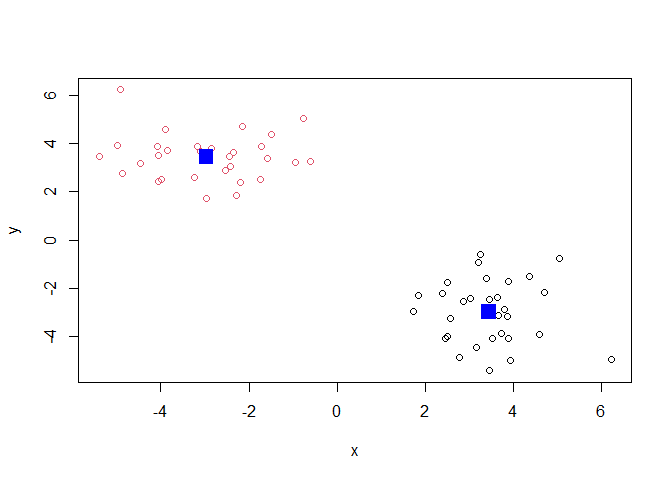

points(k$centers, col="blue", pch=15, cex=2)

Q. Can you run kmeans() again and cluster x into 4 clusters and plot the results just like we did above with coloring by cluster and the cluster centers shown in blue.

k4 <- kmeans(x, centers=4)

plot(x, col=k4$cluster)

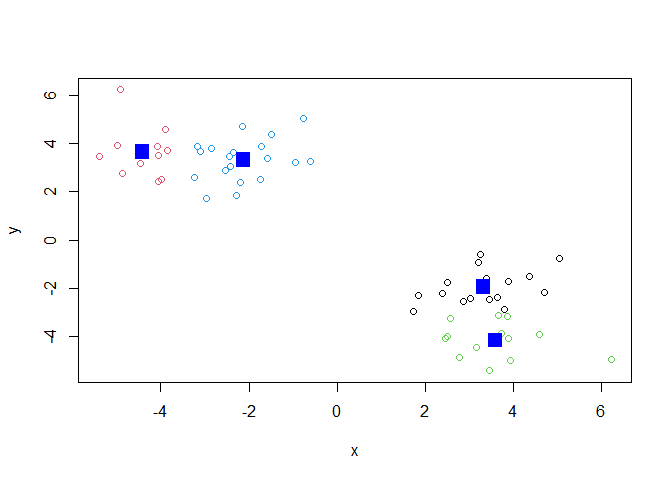

points(k4$centers, col="blue", pch=15, cex=2)

Key-point: Kmeans will always return the clustering that we ask for (this is the “K” or “centers” in K-means)!

k$tot.withinss

[1] 153.5299

Hierarchical clustering

The main function for Hierarchical clustering in base R is called hclust().

One of the main differences with respect to the kmeans() function is that you can not just pass your input data directly to hclust() - it needs a “distance matrix” as input. We can get this from lot’s of places including the dist() function.

d <- dist(x)
hc <- hclust(d)
plot(hc)

We can “cut” the dendrogram or “tree” at a given height to yield our “clusters”. For this we use the function cutree()

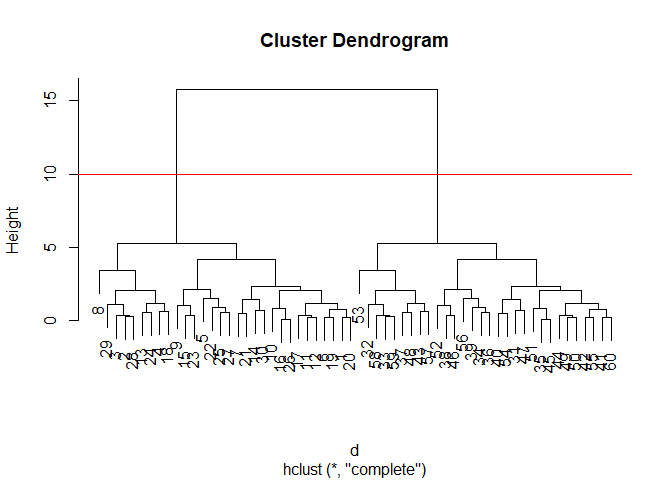

plot(hc)
abline(h=10, col="red")

grps <- cutree(hc, h=10)

grps

 [1] 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 2 2 2 2 2 2 2 2
[39] 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2

Q. Plot our data x colored by the clustering result from hclust() and cutree()?

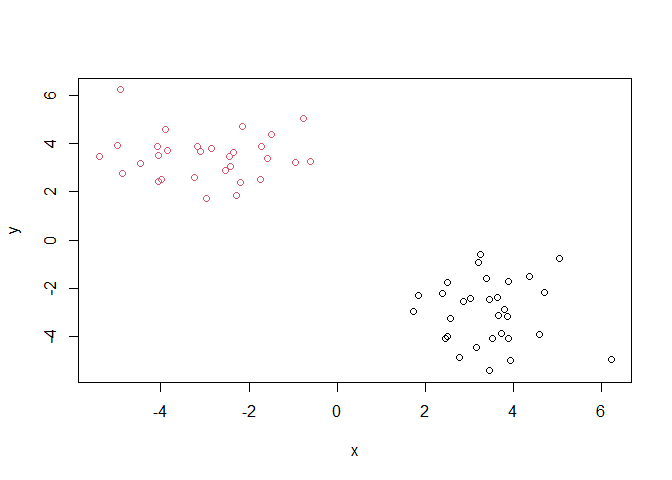

plot(x, col=grps)

plot(hc)

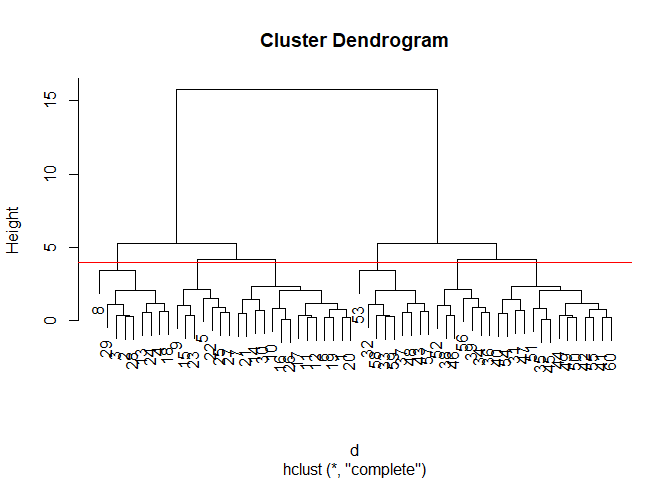

abline(h=4, col="red")

cutree(hc, h=4)

 [1] 1 2 2 2 3 1 1 2 3 1 1 1 2 1 3 1 1 2 1 1 1 3 3 2 3 1 3 2 2 1 4 5 5 6 4 6 5 6
[39] 6 4 4 4 5 4 4 6 4 5 4 4 4 6 5 4 4 6 5 5 5 4

Principal Component Analysis (PCA)

PCA is a popular dimensionality reduction technique that is widely used in bioinformatics.

PCA of UK food data

Read data on food consumption in the UK

url <- "https://tinyurl.com/UK-foods"
x <- read.csv(url)
x

                     X England Wales Scotland N.Ireland
             Cheese     105   103      103        66
      Carcass_meat      245   227      242       267
        Other_meat      685   803      750       586
               Fish     147   160      122        93
     Fats_and_oils      193   235      184       209
             Sugars     156   175      147       139
    Fresh_potatoes      720   874      566      1033
         Fresh_Veg      253   265      171       143
         Other_Veg      488   570      418       355
Processed_potatoes      198   203      220       187
    Processed_Veg      360   365      337       334
      Fresh_fruit     1102  1137      957       674
          Cereals     1472  1582     1462      1494
         Beverages      57    73       53        47
      Soft_drinks     1374  1256     1572      1506
 Alcoholic_drinks      375   475      458       135
    Confectionery       54    64       62        41

It looks like the row names are not set properly. We can fix this

rownames(x) <- x[,1]
x <- x[,-1]

A better way to do this is fix the row names assignment at import time:

x <- read.csv(url, row.names = 1)

Q1. How many rows and columns are in your new data frame named x? What R functions could you use to answer this questions?

dim(x)

[1] 17  4

17 rows and 4 columns, use dim().

Q2. Which approach to solving the ‘row-names problem’ mentioned above do you prefer and why? Is one approach more robust than another under certain circumstances?

I like rownames() more because it is easier to memorize in my opinion. However, the second approach is probably more robust cause if you run the first approach too many times it deletes each column, making it an error at the end.

Spotting major differences and trends

Using base R

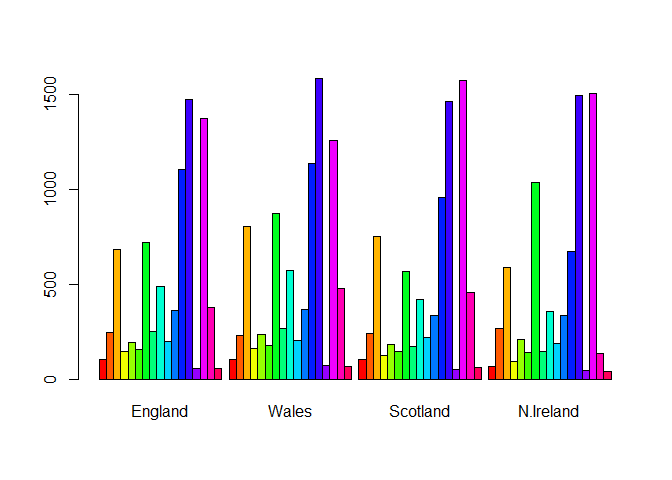

barplot(as.matrix(x), beside=T, col=rainbow(nrow(x)))

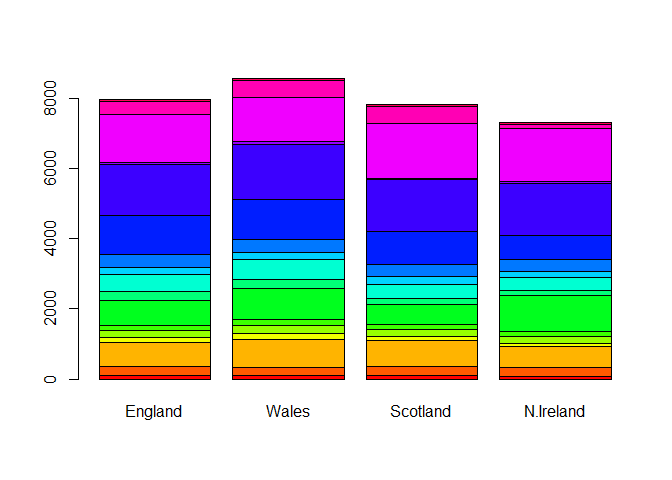

Q3: Changing what optional argument in the above barplot() function results in the following plot?

barplot(as.matrix(x), beside=F, col=rainbow(nrow(x)))

Set beside to False.

Create grouped bar plot

Q4. Is missing

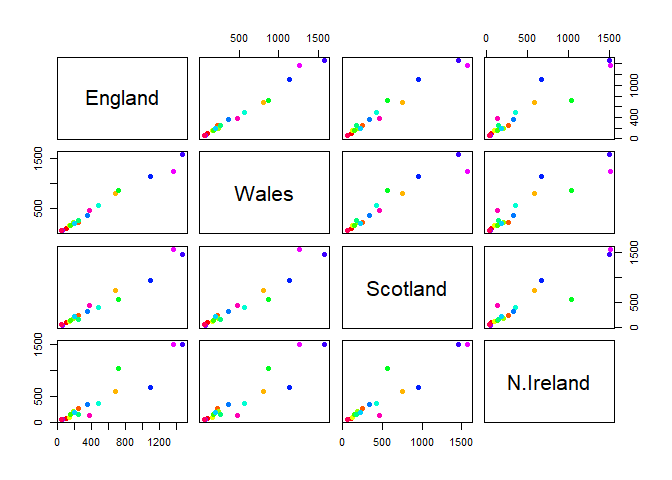

Q5: We can use the pairs() function to generate all pairwise plots for our countries. Can you make sense of the following code and resulting figure? What does it mean if a given point lies on the diagonal for a given plot?

pairs(x, col=rainbow(nrow(x)), pch=16)

If the point lies on the diagonal that means they are the same values, if they are off the diaganol that means they are different foods. If its above the diagonal that means its on the England axis while below the diagonal its on the Ireland axis.

Heatmap

We can install the pheatmap package with the install.packages() command that we used previously.Remember that we always run this in the console and not a code chunk in our quarto document.

library(pheatmap)

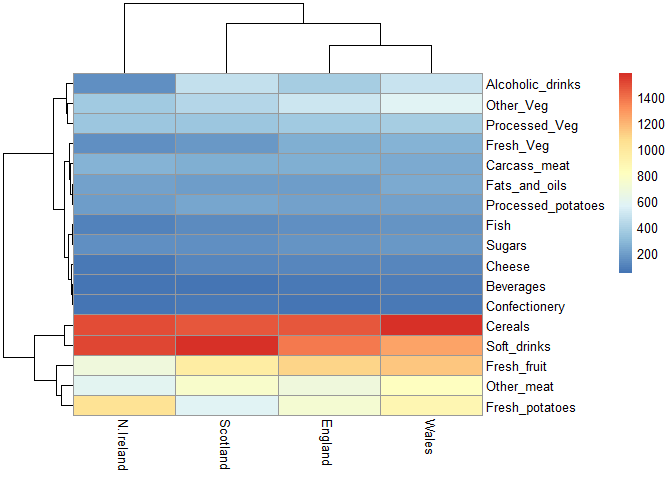

pheatmap( as.matrix(x) )

Of all these plot really only the pairs() plot was useful. This however took a bit of work to interpret and will not scale when I am looking at much bigger datasets.

PCA the rescue

The main function in “base R” for PCA is called prcomp().

pca <- prcomp(t(x))
summary(pca)

Importance of components:
                            PC1      PC2      PC3       PC4
Standard deviation     324.1502 212.7478 73.87622 3.176e-14
Proportion of Variance   0.6744   0.2905  0.03503 0.000e+00
Cumulative Proportion    0.6744   0.9650  1.00000 1.000e+00

Q. How much varance is captured in the first PC?

67.4%

Q. How many PCs do I need to capture at least 90% of the total varance in the dataset?

Two PCs capture 96.5% of the total varance.

Q. Plot our main PCA result. Folks can call this different things depending on their field of study e.g. “PC plot”, “ordienation plot”, “Score plot”, “PC1 vs PC2 plot”…

attributes(pca)

$names
[1] "sdev"     "rotation" "center"   "scale"    "x"

$class
[1] "prcomp"

To generate our PCA score plot we want the pca$x component of the result object

pca$x

                 PC1         PC2        PC3           PC4
England   -144.99315   -2.532999 105.768945 -4.894696e-14
Wales     -240.52915 -224.646925 -56.475555  5.700024e-13
Scotland   -91.86934  286.081786 -44.415495 -7.460785e-13
N.Ireland  477.39164  -58.901862  -4.877895  2.321303e-13

my_cols <- c("orange", "red", "blue", "darkgreen")

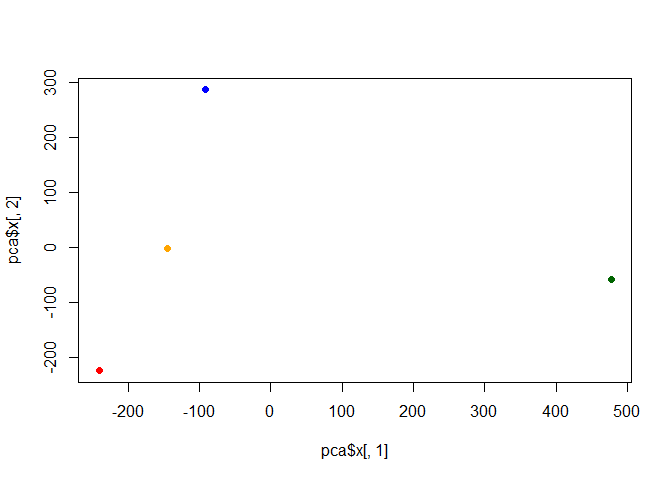

plot(pca$x[,1], pca$x[,2], col=my_cols, pch=16)

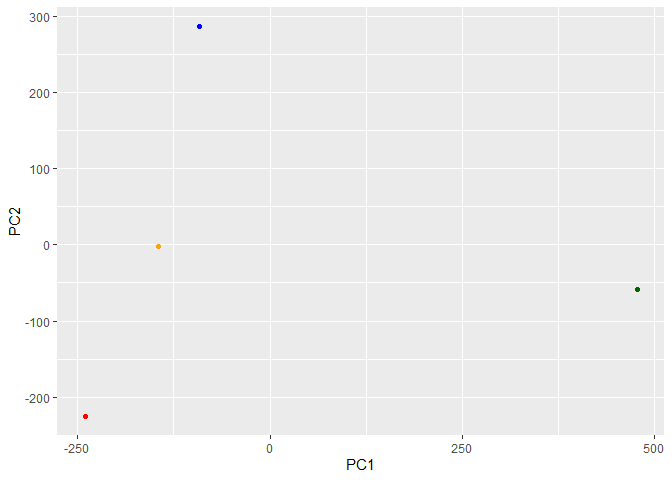

library(ggplot2)

ggplot(pca$x) +
  aes(PC1, PC2) +
  geom_point(col=my_cols)

Digging deeper (variable loadings)

How do the original vaiable (i.e. the 17 different foods) contribute to our new PCs?

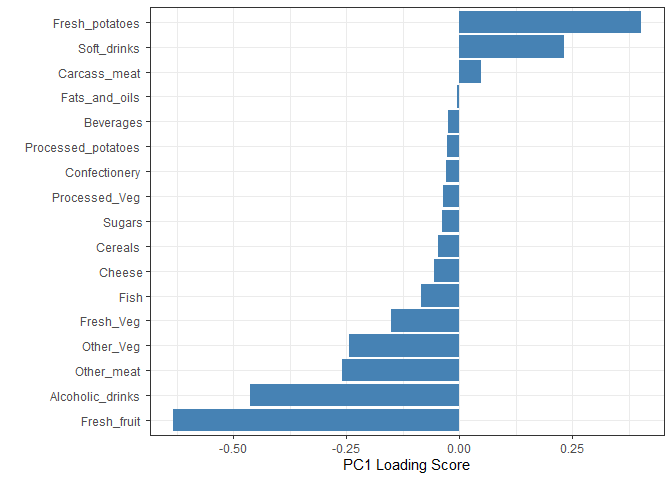

ggplot(pca$rotation) +
  aes(x = PC1,
      y = reorder(rownames(pca$rotation), PC1)) +
  geom_col(fill = "steelblue") +
  xlab("PC1 Loading Score") +
  ylab("") +
  theme_bw() +
  theme(axis.text.y = element_text(size = 9))
